Solution For Accurate PH Measurement Of Pure And Ultrapure Water

I. Application Background

Low-conductivity water samples, such as boiler feedwater, semiconductor ultrapure water, pharmaceutical purified water, and laboratory Class I pure water, require extremely strict pH control. Abnormal pH directly indicates water quality deterioration, easily leading to equipment corrosion, scaling, decreased chip yield, and risks to formulation stability.

Pure/ultrapure water has extremely low ion concentrations and extremely high impedance. Ordinary pH electrodes generally suffer from slow response, reading drift, poor repeatability, insufficient accuracy, and shortened lifespan. The core reason lies in the unstable liquid junction potential, long equilibrium time, and susceptibility to diffusion interference in conventional reference systems; simultaneously, high internal resistance results in weak signals and difficulty in rapid stabilization, failing to meet the requirements of high-precision and high-stability measurements.

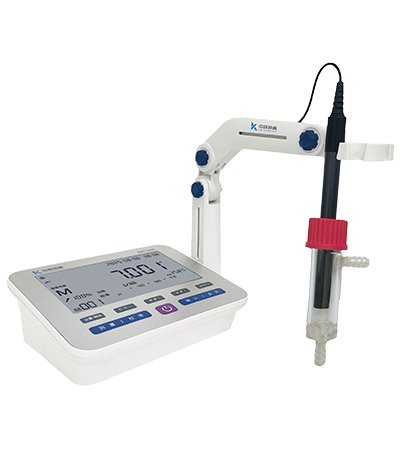

Zhongke Tk has specifically optimized solutions for ultra-low conductivity water samples, launching a laboratory benchtop pH meter + ultrapure water-specific pH composite electrode combination solution. This upgrade, encompassing electrode structure, reference system, and signal processing, provides a complete overhaul, making pure water pH measurements faster, more stable, and more accurate.

II. Measurement Challenges and Technical Solutions

Ultrapure water pH measurement faces three core challenges:

1. Extremely low conductivity, high measurement circuit impedance, weak signal easily affected by interference;

2. Reference liquid junction potential is prone to drift, resulting in significant liquid junction error;

3. Extremely high absorption of CO₂ from the air causes a rapid drop in pH, leading to data distortion.

The Zhongke Tk pH meter is equipped with a dedicated ultrapure water pH composite electrode, employing four key design features:

Low internal resistance, high-response sensitive membrane: Significantly reduces electrode internal resistance, improves response speed, and provides rapid and stable readings;

Multi-stage long-lasting reference system: Optimizes the liquid junction structure, suppresses potential drift, and significantly reduces pure water measurement errors;

High-precision ground joint and flow stabilization design: Reduces reference liquid leakage and contamination, extending electrode lifespan;

Overall anti-interference circuit: Equipped with a high-precision impedance converter, it ensures stable acquisition of weak signals and stronger data consistency.

III. Measurement Method and Actual Performance

This method employs the glass electrode method, strictly adhering to industry standards such as GB/T 12145-2016, and is suitable for testing samples including drinking purified water, laboratory ultrapure water, boiler feedwater, and condensate.

Measurement Procedure

1. Electrode Activation: Activation with a dedicated protective solution; automatic calibration with standard buffer solution.

2. Sample Processing: Fresh water samples are sealed for sampling to reduce CO₂ interference.

3. Measurement: The electrode is placed in the water sample, automatic temperature compensation is activated, and the reading is recorded after stabilization.

4. Data Management: Automatic storage and traceability; supports report export and printing.

Actual Performance Comparison

In ultrapure water and boiler feedwater tests:

Ordinary electrode: Readings continuously drift and fail to stabilize over extended periods, with errors exceeding 0.3 pH;

Zhongke Tk dedicated electrode: Rapidly stabilizes within 60–180 seconds, exhibiting excellent repeatability. Ultrapure water pH remains stable within the 5.80–6.20 range, providing reliable and highly consistent data, comparable to mainstream international dedicated electrodes.

IV. Core Advantages of the Solution

1. Precise and Stable: Resolution up to 0.001 pH, accuracy ±0.002 pH, meeting ppb-level water quality control requirements, with no significant drift during long-term continuous measurements.

2. Rapid Response: Low-resistivity membrane + optimized reference structure enables rapid equilibration of pure water samples, significantly reducing testing time and improving laboratory efficiency.

3. Intelligent and Easy to Use: Automatic calibration, automatic temperature compensation, automatic electrode identification, clear large-screen display, simple operation, and reduced human error.

4. Compliance and Traceability: Large-capacity data storage supports time, personnel, and location labeling, meeting the compliance audit requirements of industries such as power, pharmaceuticals, semiconductors, and special inspection.

5. Durable and Worry-Free: Electrodes are resistant to contamination and low conductivity conditions, easy to maintain, and have a significantly longer service life than conventional electrodes, resulting in lower overall operating costs.

V. Solution Summary

The Zhongke Tk pH meter solution for pure/ultrapure water pH measurement is based on a laboratory benchtop unit and uses ultrapure water-specific electrodes as its core, specifically addressing the challenge of measuring low conductivity water samples. The solution is mature and reliable, with standardized operation and accurate, traceable data. It is widely applicable to scenarios such as power plant water treatment rooms, semiconductor laboratories, pharmaceutical QC, and third-party testing institutions, providing crucial data support for water quality safety, equipment corrosion and scale prevention, and production process stability. It is the preferred solution for accurate pH measurement of pure and ultrapure water.
