Water Quality Silicate Precise Detection Solution

I. Background of the Solution

In routine water quality testing at power and heat, fine chemical, water treatment, and third-party testing laboratories, silicate content is a key indicator for assessing the quality of boiler feedwater, condensate, softened water, and high-purity water. Excessive silicate levels in water easily lead to the formation of insoluble silica scale, which adheres to heat exchange pipes and boiler inner walls, causing reduced heat exchange efficiency, equipment blockage, corrosion, and aging, and in severe cases, posing potential operational risks to the unit.

Traditional manual colorimetric and simple spectrophotometric detection methods are cumbersome, prone to human error, have non-standard reagent ratios, poor data repeatability, and are time-consuming and labor-intensive, failing to meet the standardized, routine, and high-precision testing needs of laboratories. To address the specific testing requirements of laboratories, the Zhongke Tk fully automated benchtop silicate analyzer is introduced. Based on this dedicated fully automated benchtop model, a standardized and automated silicate detection solution is established, achieving stable water sample testing, accurate and controllable data, and standardized testing procedures, completely freeing up manual labor.

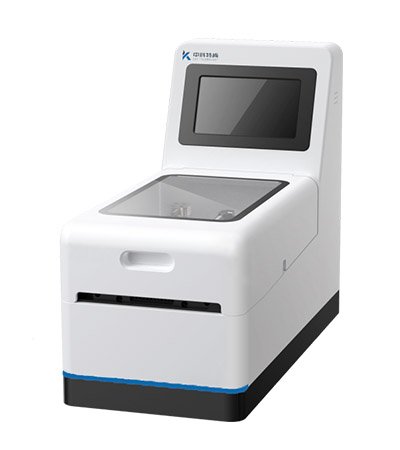

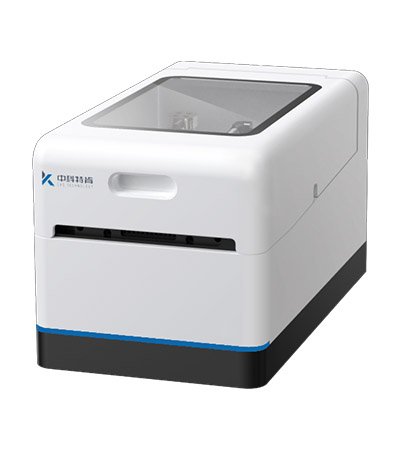

II. Core Equipment: Zhongke Tk Fully Automated Benchtop Silicate Analyzer

The core equipment in this solution is the Zhongke Tk fully automated benchtop silicate analyzer, specifically developed for laboratory static testing and batch water sample analysis. It eliminates the complex pipelines and continuous sampling structures of online systems, focusing on the precise and automated testing needs of laboratories. It is suitable for core scenarios such as batch water sample testing, fixed-point testing, and sample retesting.

The instrument adopts the national standard silicon molybdenum blue spectrophotometric method. It incorporates a precise optical detection module, a constant temperature reaction system, and a fully automated reagent dispensing and water sample injection module. The testing process is fully automated and standardized, requiring no manual intervention. The detection range covers trace to macro silicate ions, adapting to different water samples such as high-purity water, industrial circulating water, and boiler feedwater. Equipped with an intelligent anti-interference algorithm, it automatically subtracts blank values and includes baseline calibration, effectively avoiding slight interference from color and turbidity. The test data is stable, highly repeatable, and has an RSD ≤ 1%.

The machine boasts a simple and compact structure, fitting seamlessly into standard laboratory bench layouts without complex installation or modification. Its user interface is intuitive and user-friendly, featuring multiple built-in standardized testing programs. A single button start completes the entire process: water sample introduction, reagent addition, colorimetric reaction, temperature control, optical detection, and concentration calculation. This eliminates the tedious manual reagent preparation, timing, and calculation, significantly reducing human error.

Equipped with large-capacity local storage, it can automatically save over ten thousand sets of test data, supporting one-click data retrieval, export, and printing. This meets the compliant management requirements for laboratory record keeping, quality inspection traceability, and document archiving, and is suitable for the construction of standardized laboratory testing systems.

III. Overall Solution

1. Applicable Scenarios

Focusing on static laboratory testing scenarios, this solution covers enterprise central laboratories, third-party water quality testing agencies, power plant water treatment laboratories, and industrial water treatment laboratories. It is used for specialized silicate testing in routine water sample delivery, fixed-point sampling, and retained sample testing, and is particularly suitable for the efficient and accurate testing needs of batch water samples.

2. Solution Operation Flow

After unified collection and standardized retention of water samples, they are sent to the laboratory. Operators place batches of water samples to be tested into the instrument's sample tray, prepare the corresponding special reagents, and load them into the reagent compartment. The corresponding detection program is selected, and the equipment starts the fully automatic detection mode, automatically completing water sample injection, precise reagent dispensing, isothermal colorimetric reaction, optical detection, and concentration calculation. No manual intervention is required, and accurate silicate values are quickly output.

After detection, the instrument automatically saves the detection data, labels the detection time and parameters, and allows for retrieval of historical data at any time. Batch water samples can be continuously and automatically tested, significantly improving laboratory testing efficiency. Routine maintenance only requires simple cleaning of the optical path, periodic calibration and maintenance, and reagent replenishment. The equipment is simple and convenient to operate, suitable for long-term, high-frequency use in laboratories.

3. Core Advantages of the Solution

Compared to traditional manual testing, the fully automatic benchtop equipment achieves full automation of core operations, completely reducing human error. Test results meet industry water quality testing standards, and the data is accurate and reliable. The integrated design requires no complex installation or modification; it is ready to use immediately upon placement, adaptable to existing laboratory layouts, and has low investment costs and rapid deployment.

The fully automated process simplifies laboratory operations, shortens single-sample testing time, adapts to daily batch testing in laboratories, significantly improves overall quality inspection efficiency, and frees up manual labor. Data is automatically retained and traceable throughout the process, helping laboratories establish standardized and regulated testing systems, meeting internal control management and industry compliance self-inspection requirements.

IV. Solution Summary

This solution addresses the core needs of static testing in laboratories, using the Zhongke Tk fully automated benchtop silicate analyzer as its core platform. It specifically solves the industry pain points of traditional silicate detection, such as low accuracy, cumbersome operation, large errors, and time-consuming processes.

The equipment is specifically customized for laboratory scenarios, combining fully automated operation, accurate detection, and easy maintenance. Its streamlined structure and convenient operation can completely replace traditional manual testing methods, significantly improving laboratory testing efficiency and data reliability. Its stable and accurate fully automated detection capabilities provide reliable data support for industrial water treatment control, boiler equipment corrosion and scale prevention, and water quality indicator control, making it a practical and efficient preferred solution for various physicochemical laboratories' silicate-specific testing.
