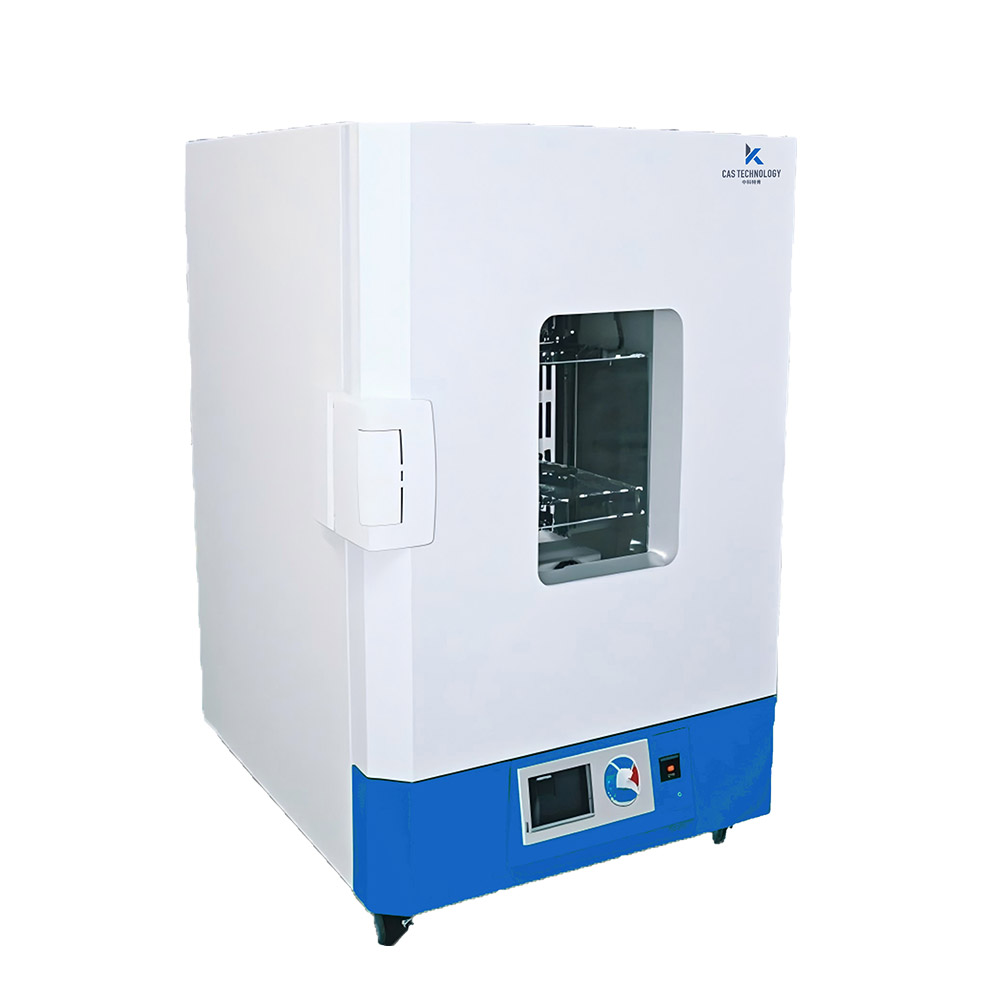

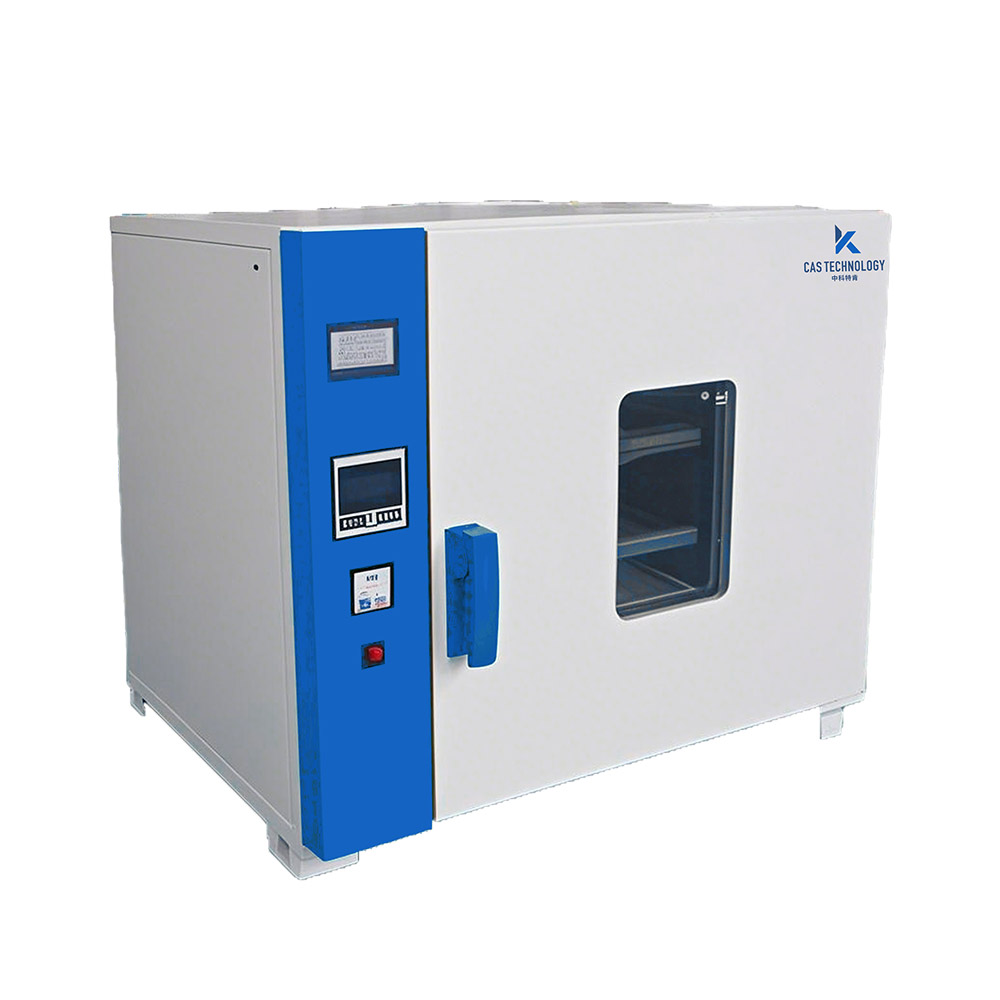

Electric Drying Oven

Energy-saving design

It saves 25% energy compared to traditional equipment, resulting in higher heating efficiency.

The system automatically adjusts control parameters based on ambient temperature and load to achieve optimal heating and reduce energy consumption.

Intelligent LCD screen control

Large LCD screen displays parameters in real time, and is simple and convenient to operate.

The menu-driven interface is simple and convenient to use, allowing for quick setting of temperature and time parameters.

Operation functions: Constant value operation, timed operation. When the operation time is up, the screen will display " END " and a buzzer will sound to remind you.

It can be equipped with a programmable control instrument, which can set up to 30 programs to control temperature and time, with each program set to 1-99 hours and 59 minutes.

Internal circulation system

High-quality fan with large impeller for higher ventilation efficiency and better temperature uniformity.

Circulation system adopts rear air suction and bottom vertical air supply, enhancing ventilation and temperature uniformity.

Specialized sheet metal processing

Cabinet is laser-cut and integrally formed; outer cabinet is made of high-quality cold-rolled steel plate with anti-static spraying; inner chamber is made of high-quality brushed stainless steel.

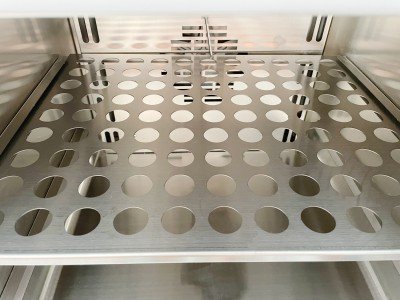

Shelves are integrally laser-cut from stainless steel without welding points, with load-bearing beams at the bottom for enhanced load capacity.

Detachable shelves with adjustable height (minimum spacing: 30mm).

Shelves feature slide rail and bayonet design to prevent tilting and displacement.

Large rounded corner design for easy cleaning and maintenance without dead corners.

Brushed stainless steel treatment for strong corrosion resistance.

Tempered double-layer glass observation window for clear viewing of objects inside the chamber.

User-Friendly Design

Chinese/English menu options to meet different language needs.

Celsius (℃)/Fahrenheit (℉) conversion available.

 Stackable design to save laboratory space.

Security features

High-quality aluminum silicate wool insulation material with thickened insulation layer to ensure low cabinet surface temperature and safer operation.

Built-in over-temperature control sound and light alarm system: heating stops when exceeding limit temperature, and automatic sound and light alarm activates when exceeding alarm temperature.

Self-diagnosis function: displays fault information on the monitor for easy troubleshooting.

Configurable high/low temperature and over-temperature alarms.

Stainless steel heating tube for corrosion resistance and long service life.

One-year warranty

Note: Performance parameters were tested under no-load conditions, with an ambient temperature of 25°C and an ambient humidity of 55%RH.

Optional items

Printer or 485 interface (choose one), independent temperature controller, test port
