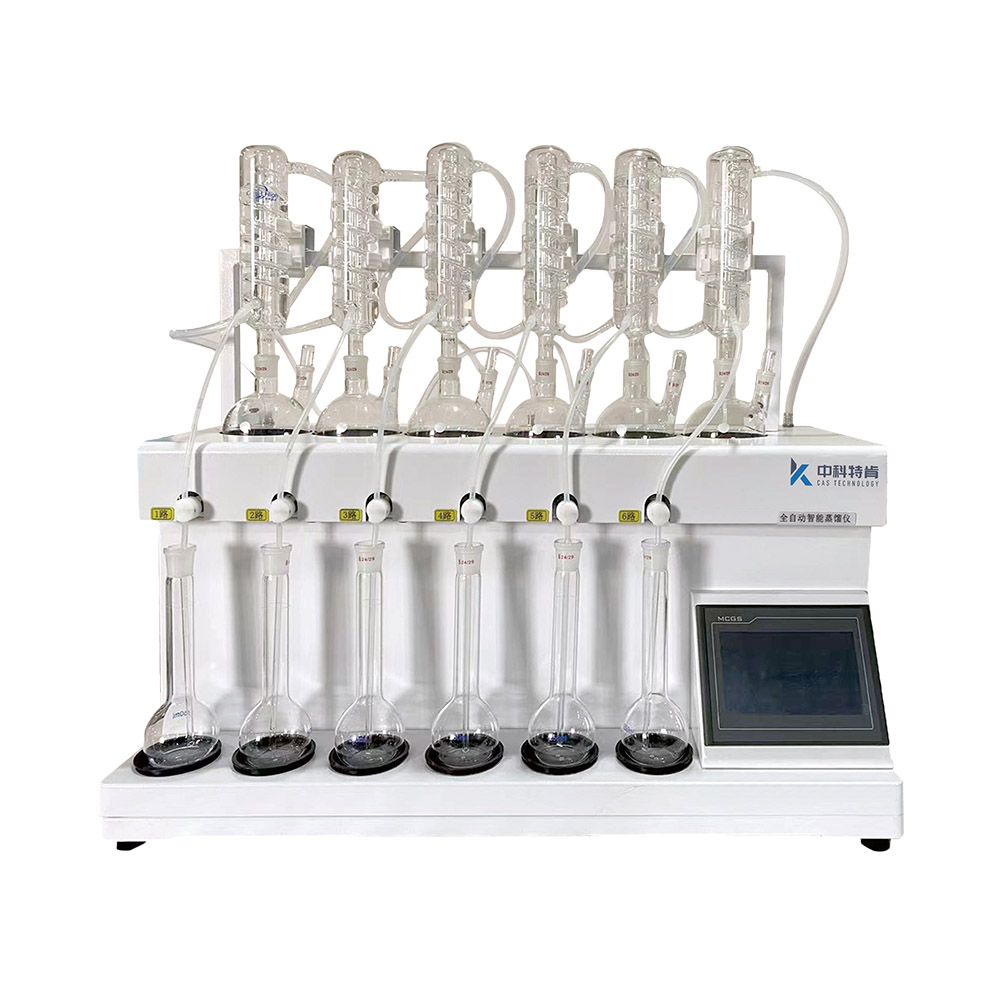

TK- 1000 Fully Automatic Intelligent Distillation Instrument

I. Equipment Requirements:

The TK- 1000 fully automatic intelligent distillation apparatus is a commonly used and crucial pretreatment application for sample testing. Widely used in laboratories at all levels, it employs microcomputer control, enabling the entire distillation process to proceed without manual intervention. A far-infrared ceramic heating device replaces a high-power electric heater, and intelligent distillation endpoint control achieves the goals of simple operation, automatic distillation, aesthetic appeal, practicality, and energy saving. It is widely applicable to the distillation of volatile phenols, cyanides, ammonia nitrogen, etc., from water samples in environmental monitoring, water supply and drainage, and disease prevention and control centers; as well as the distillation of sulfur dioxide residues, formaldehyde, alcohol content, etc., in the food testing field; and features online cleaning of condenser lines.

II. Instrument Requirements:

1. It requires no less than six operating modes, with standard parts sealed connections to prevent leakage, capable of processing six samples simultaneously , and single-hole single-control capability to achieve timed and quantitative automatic distillation ;

★2. Carbon fiber light-sensitive corrosion-resistant heat source, low power consumption, even heat distribution, faster distillation efficiency , and anti-dry burning protection function;

3. Large LCD touchscreen, easy to operate and use;

4. The serpentine condenser features a double-layer vacuum design, resulting in fast distillation and no backflow during heating;

5. The condensate water source is automatically drained to inhibit bacterial growth and keep the condensate water source clean ;

6. Automatic anti-backflow , intelligent cleaning of distillate pipeline , and selectable receiving bottle ;

III. Parameter Requirements:

1. Sample quantity: 1-6 sample channels, single-channel control, 7-inch LCD touchscreen .

2. Heating method: Carbon fiber photosensitive corrosion-resistant heat source , flameless heating, heating time 5 minutes.

★ 3. Anti-dry-burning protection (alarm dry-burning protection temperature can be set arbitrarily), anti-backflow protection.

4. Temperature control : Automatic temperature control for each individual port, ranging from room temperature to 320 ℃ .

5. Power compensation, weight compensation

★ 6. View historical alarm records

★ 7. Time control: 0-300 min, distillation volume setting: ≤300 mL, distillation volume accuracy: ±1 mL

8. Residual current protection: available

9. Heating power: 3500 W

10. Instrument dimensions (mm): 860*400*760

IV. Configuration Requirements:

1 main unit, 1 external chiller , 6 250ml receiving bottles , 6 500ml two-necked round-bottom flasks , 6 pressure relief condenser tubes, 6 #19 glass stoppers, 6 #24 glass stoppers , 6 slanted straight glass tubes , 1 two-necked flask tray, and 1 set of accessories.
