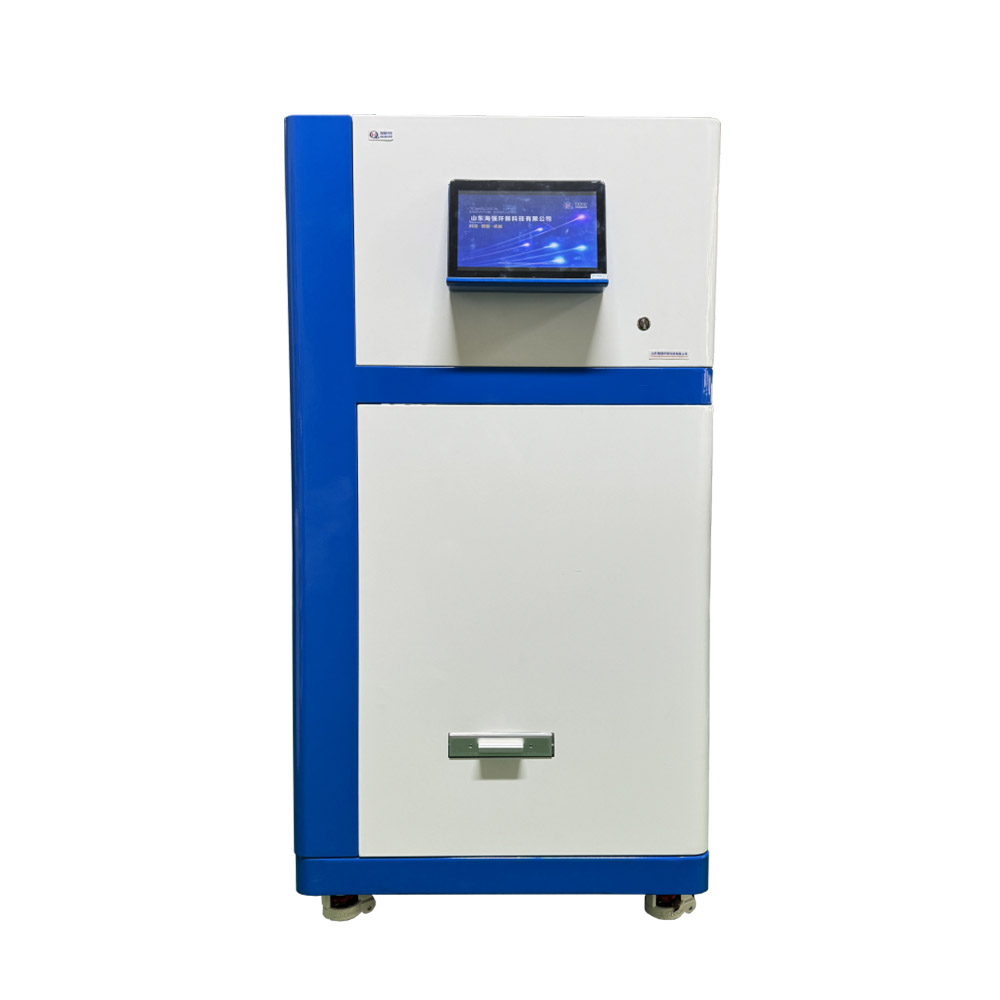

WIN-8A Low Background αβ Meter (independent Injection)

(92) Reviews

Product Description:

WIN-8A independent injection low background αβ measuring device has a variety of 2 to 12 specifications, using a new appearance design, can be equipped with a tablet computer, to achieve remote control. Each channel of the instrument can be measured separately separately, measured separately and produced separately; all the parameters of the instrument are automatically set by the software program, and the measurement process is highly automated. The weak radioactivity of the sample measured by this instrument requires no consumables, the experimental cost is low, and the operation is easy. It is the first choice for measuring the total αβ specific activity of the sample. It is mainly used for measuring the total α and β activity concentration in samples in the fields of radioactive detection, radiation environment monitoring, nuclear power plant, geological exploration, colleges and universities, entry-exit inspection and quarantine, third-party testing and scientific research institutions.


Share:

Inquiry Now

Product Details

Product Application Areas

Water quality testing Center of the water supply company

The Centers for Disease Control and Prevention

environmental monitor station

The Food and Drug Administration

Third-party testing agency

Rural drinking water safety project water quality testing center

institutions of higher learning

Other scientific research and testing units


Product Qualification

License of manufacturing measuring instruments: - - - - - - -LUManufacturing No.01000432

Radiation Safety License: - - - - - - -LHRF Certificate [01165]

Approval certificate of type of measuring instrument: - - - - - - -2015A315-37

1-10 road combined low background αβ measurement system: - - - - - - -soft written Dengzi no. 1635799

Low background αβ measuring instrument at any time injection control system: - - - - - - -soft write deng word no. 1635788

Approval Letter: - - - - - - -Luhuan Letter [2017] No.480 (CC: Ministry of Environmental Protection)

Announcement of the Ministry of Environmental Protection: - - - - - - -Announcement on the exemption of radioisotopes and radiation devices (the fourth batch)


Applied Code

GB / T11682-2008- - - - - - -National Standard for Low Background αβ Measurement

Product verification: JJG853-2013- - - - - - -Low background αβ Measurement Instrument Verification Procedure

Product application meets GB / T5749-2022- - - - - - - -Drinking Water Sanitation Standard

GB/T5750.13-2023-------Standard Test Method for Drinking Water Sanitation-Radioactive Index

GB8538-2016- - - - - - -National Standard Drinking Natural Mineral Water

GB19298-2014- - - - - - - - -National Standard for Food Safety Packaging Drinking Water

HJ 898-2017- - - - - - - -Determination of Radioactivity in Total α of Water Quality

HJ 899-2017- - - - - - - -Determination of Radioactivity in Total β of Water Quality



Specification

Main Technical Parameters

instrument background:

The α particle counting rate per unit area is≤0.002cm-2min-1;


The β particle counting rate per unit area is≤0.1cm-2min-1;

detection efficiency:

The 2 π detection efficiency for 239Pu α source (active zone Φ 25mm)≥85％


The 2 π detection efficiency for 90Sr-90Yβ source (active zone Φ 25mm)≥58％

Efficiency stability:

The instrument was measured continuously for 24 hours with detection efficiency changes α <2% and β <3%

String way than:

α The count ratio into lane β is <1% (to 239Pu),


Count ratio of α is <0.1% (for 90Sr-90Y)

Pressure-resistant insulation:

> 1,500 V; insulation resistance: 2M Ω

Measurement method:

 simultaneously, or either α or β can be measured separately;


The measurement process and the measurement results can be displayed on the display, and the results can be printed;


The measurement time, α threshold of the detector, β low (β L), β high (β H) and high pressure can be adjusted by computer upon request.

going:

Power supply voltage: AC 220V ± 10%; 50Hz;

Ambient temperature: 5~400C ± 20C;

＜90％(+300C)；Relative humidity: <90% (+ 300C)


Optional Configuration:

model number

WIN-8A

Number of optional channels

two-channel

three-channel

Four-channel

Six-channel

Eight-channel

Ten-channel

twelve-channel

Number of samples per sample

2

3

4

6

8

10

12

Sample drawing board

2

3

2/4

3

4

5

6

Detector

2

3

4

6

8

10

12

Anti-detector

2

2

2

2

2

2

2

 specimen disc

40

60

80

100

120

140

160
