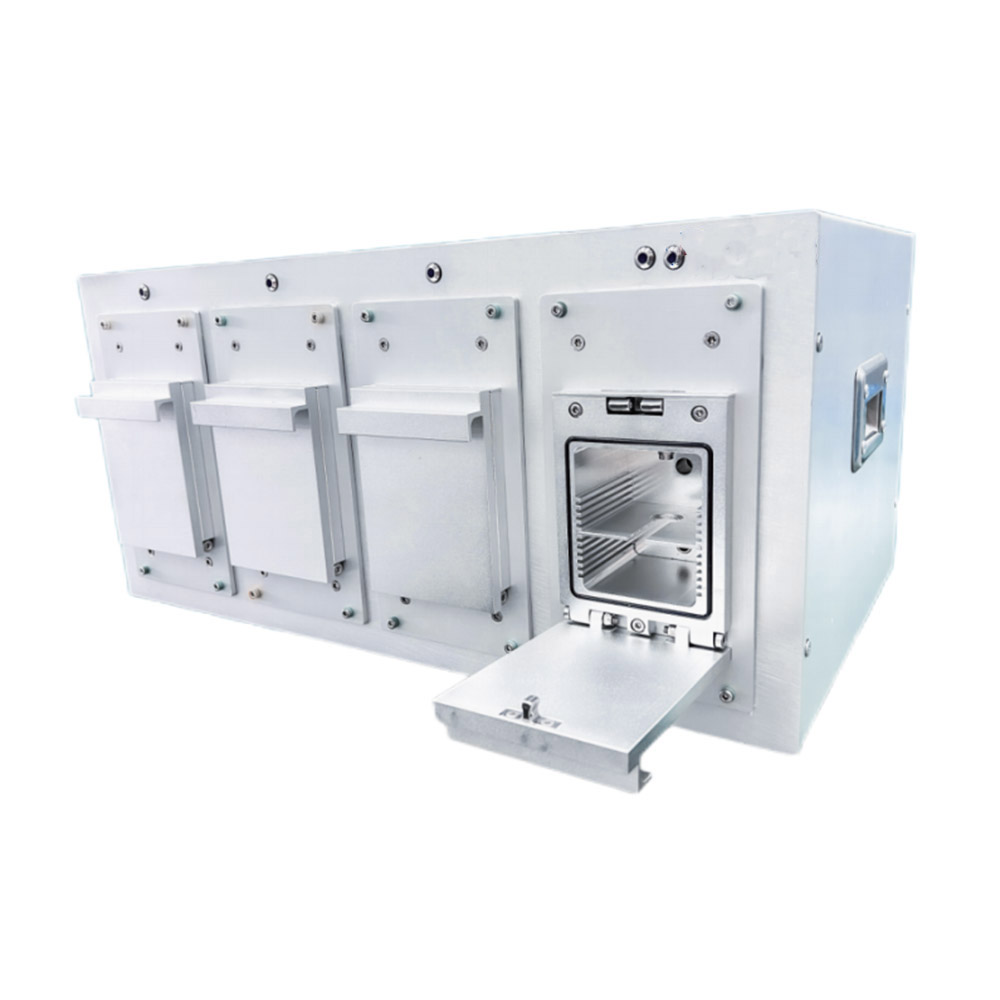

WIN-525 Low Background Alpha Spectrometer

Water Quality Analysis

pH Meter Conductivity Meter Dissolved Oxygen Meter Lon Meter Multi-parameter Water Quality Analyzer Rapid Water Quality Tester Fully Automated Water Quality Analyzer Hydrogen Conductivity Meter Silicate And Phosphate Detectors BOD Analyzer
Laboratory Basics

Vacuum Pump/Peristaltic Pump Constant Temperature/Heating/Temperature Control
Sample Pretreatment

Inorganic Sample Pretreatment Organic Sample Pretreatment
Physical Property Analysis

Laboratory Radioactive Analysis Instruments Radiation Monitoring And Protection Instruments Radiometric Measurement And Standard Instruments

Laboratory Radioactive Analysis Instruments

(92) Reviews

Product Description:

Instruments are widely used in fields such as environmental and health assessments (e.g., radon and thoron aerosol measurements, food inspection, human health), resource exploration (uranium, oil, natural gas, etc.), and geological structure exploration (such as groundwater resources, geological subsidence, etc.).

Inquiry Now

Product Details
Inquiry
Products Recommended

Product Details

Product Features

Adopting the ion-implanted silicon detector (PIPS)

Dual anti-staining technology

Modular design measurement unit, can be quickly installed and replaced

Small size, high precision, low temperature drift, high stability vacuum pressure sensor technology

Full isolation circuit vacuum valve, vacuum pump control circuit

High-precision multi-channel analysis system

Supports various spectral analysis methods, selectable

Can run under Windows systems, with a fully Chinese user interface that is simple and clear.

The interface can display multiple measurement windows simultaneously, or select a single measurement window for enlarged display.

Specification

Main Technical Parameters

Detector	PIPS Detector
Effective detection area	450mm2
Energy Range	3~10MeV
detection efficiency	≥25%
Energy channel value	256、512、1024、2048、1096、8192
Linearity	Integral nonlinearity ≤ 0.05%, differential nonlinearity ≤ 1%
Multi-stage gain	Adjustable from 0.01 to 10 times
Background count	≤1 count/hour (>3MeV)
Bias adjustment	0-200V digital adjustable; step 0.5V, 1mA
Leakage current measurement range	0~5000nA
Vacuum Chamber Design	Low background integrated design
Maximum sample diameter	51mm
Sample detector distance	1-45mm，4mm
Vacuum degree	0-26.7kPa，The software can display
Working voltage	AC220V，50Hz
Communication interface	Ethernet or USB 2.0
Operating temperature	-10℃～50℃
Relative humidity	30%～90%，No condensation
