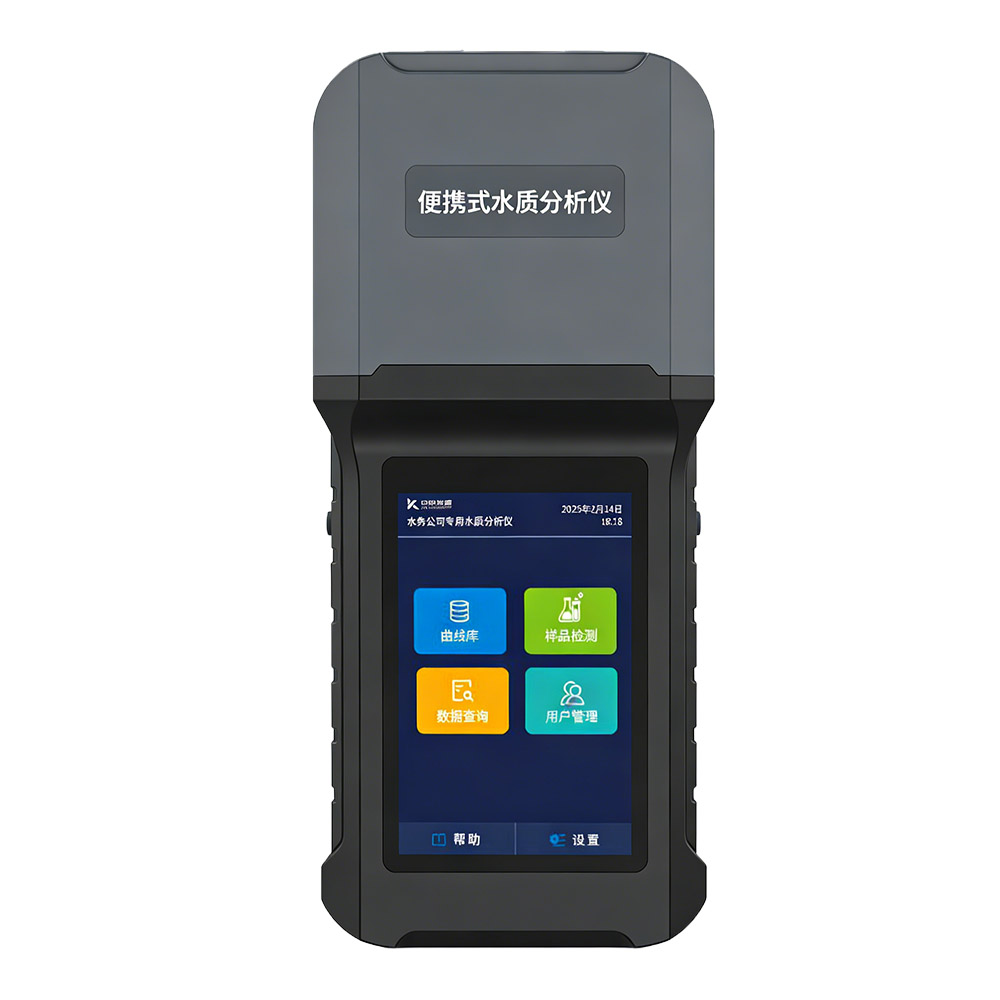

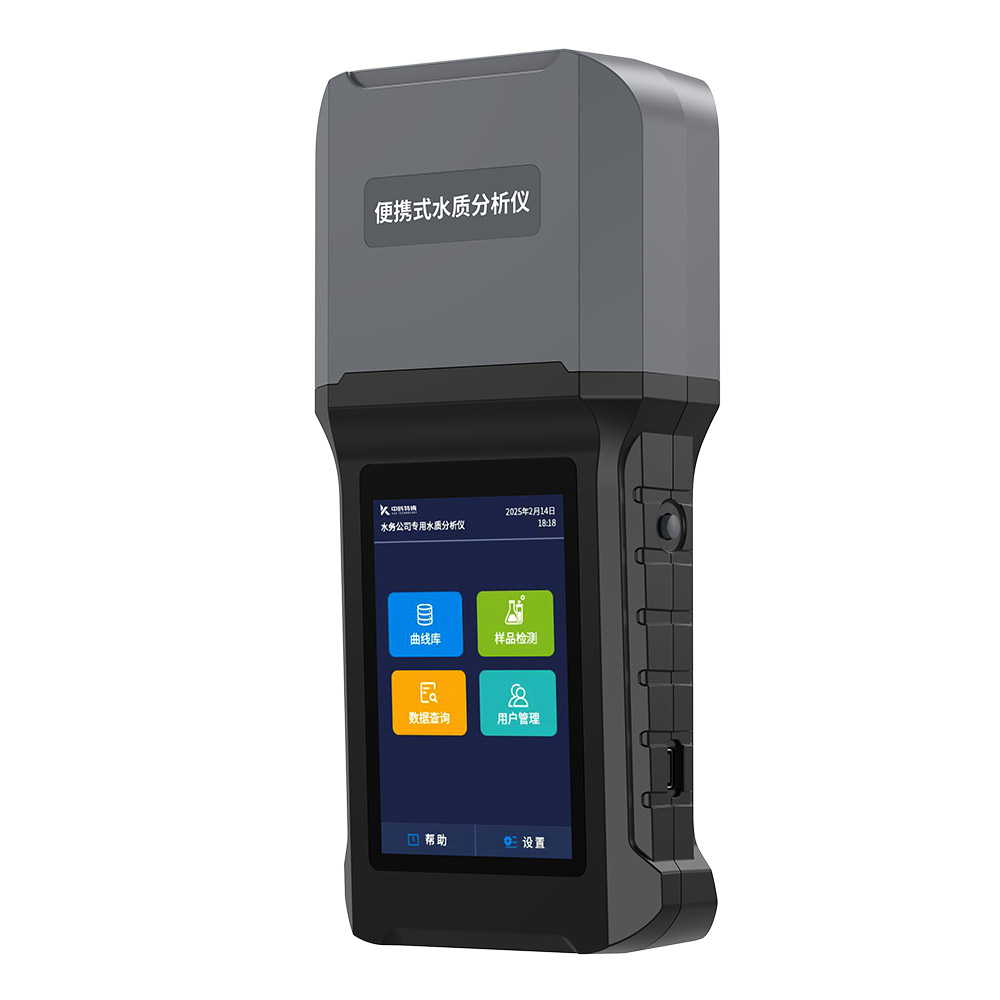

Handheld Rapid Water Quality Tester

Adopted or referenced standards

• COD was determined using the rapid digestion spectrophotometric method according to HJ/T 399-2007 .

• Ammonia nitrogen was determined using the Nessler's reagent spectrophotometric method (HJ 535-2009 ) .

• Total phosphorus was measured using the ammonium molybdate spectrophotometric method (GB/T 11893-89).

• The residual chlorine, total chlorine, and chlorine dioxide residues shall be tested in accordance with GB/T 5750.11-2006 and the requirements of the 20th edition of the U.S. Standard Examination Method for Water and Wastewater.

Features

Multi-parameter, multi-range:

It can measure multiple ranges of parameters such as COD , permanganate index, Nessler ammonia nitrogen, salicylate ammonia nitrogen, total phosphorus, total nitrogen, residual chlorine, total chlorine, chlorine dioxide, ozone, nitrite, nitrate nitrogen, hexavalent chromium, total chromium, total iron, ferrous iron, copper, manganese, nickel, zinc, cobalt, aluminum, silicon/metasilicate, sulfate, cyanide, turbidity, color , total hardness, and total alkalinity .

convenience

Users can create new curves using the dilution factor method.

Curves can be imported via Type-C interface

Curves can be input by entering K&B values, etc.

consistency

The light source is calibrated before leaving the factory to ensure the consistency of measurement indicators.

Multiple sample cells

Φ25mm/10mL colorimetric bottles are used for the detection of indicators such as turbidity, color, and hardness.

Φ16mm digestion colorimetric dual-purpose tube adapter for the detection of pre-prepared reagents.

Multiple light sources

Different light sources are built-in to meet different performance requirements, with a maximum support of 12 light sources.

Low power consumption (built-in 18650 rechargeable battery)

Using an LED light source, no need to replace the light source during long-term testing.

Built-in backlight, which can be manually turned on or off.

Massive storage

It can store no less than 100,000 test data records and provides host computer software for easy export and retrieval.

Compatibility: Compatible with reagents from different brands

Portability: It can be held in the palm of your hand, completely under your control.

Equipped with a portable digester, a testing box, and testing accessories, it can be widely used for various on-site tests.

Product Parameters

Tender parameters

Display and Input: 3.5-inch color touchscreen

Printing function: An optional external Bluetooth printer is available for convenient and immediate printing of test results.

✳Curve Function: Supports importing via Type-C data cable , inputting K&B values, and creating curves using the dilution factor method.

✳ Calibration function: Supports using the original machine of a newly created curve to calibrate the light source of other machines, ensuring high consistency of test results for imported or input curves.

Data interface: 1 Type-C port, which can be used to update data or software via a host computer.

Data storage: no less than 100,000 records

Color matching system: 16mm & 25mm dual color matching system; 25mm to 16mm adapter allows for easy closing of the cover without disassembly.

Light source and detector: Light-emitting diode (LED), photodiode

✳Light source configuration: Configure as needed; supports up to 12 light sources ; supports up to 10 light sources when configuring near-ultraviolet light sources.

✳Anti -interference design: Background subtraction using reference light eliminates interference from external factors such as suspended matter and test tube wall thickness.

Measurement error: ≤5%

Repeatability: ≤3%

Display accuracy: Adjustable between 1 mg/L and 0.001 mg/L

Power supply: One 18650 rechargeable battery or Type-C power supply. A fully charged battery provides approximately one month of standby time, making it convenient for outdoor use.
