ZhongKe TK Benchtop Rapid Water Quality Tester

Zhongke Teken (Shandong) Intelligent Technology Co., Ltd. logo
cn

Inquiry Now
banner

Products

未标题-1_0002_1 多参数水质分析仪
未标题-1_0002_1 多参数水质分析仪

Rapid Water Quality Tester

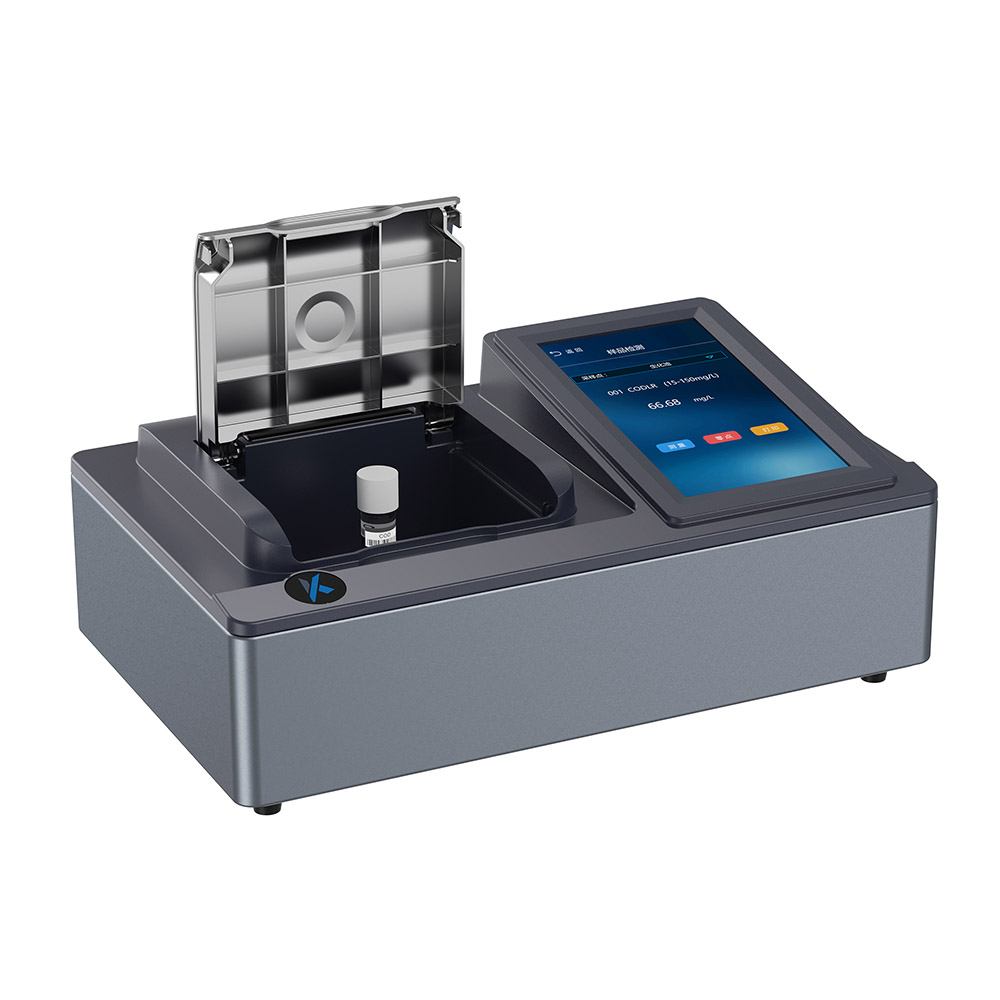

ZhongKe TK Benchtop Rapid Water Quality Tester

(92) Reviews

Product Description:

The Zhongke Teken benchtop rapid water quality analyzer can be used to measure the content of pollutants in water . This instrument adopts or references the following standards:

HJ/T 399-2007 Determination of Chemical Oxygen Demand in Water - Rapid Digestion Spectrophotometric Method

HJ 535-2009 Determination of Ammonia Nitrogen in Water Quality - Nessler's Reagent Spectrophotometric Method

HJ 536-2009 Determination of Ammonia Nitrogen in Water Quality - Salicylic Acid Spectrophotometric Method

GB/T 11893-1989 Determination of Total Phosphorus in Water - Ammonium Molybdate Spectrophotometric Method

HJ 636-2012 Determination of Total Nitrogen in Water by Alkaline Potassium Persulfate Digestion Ultraviolet Spectrophotometry, etc.

It is applicable to environmental pollution source monitoring, industrial process water monitoring, municipal sewage treatment, surface water monitoring and other fields, as well as various industries such as biopharmaceuticals, sewage treatment, and mining.


Share:

Inquiry Now

Product Details

 Measuring Range

Testing items

range

COD

0~40mg/L

COD High Chloride III

30~200mg/L

COD

10~150mg/L

COD High Chloride II

200~1500mg/L

TP

0.2~30mg/L

TN

0~25mg/L; 5~100mg/L

Ammonia nitrogen (Nessler)

0~5mg/L; 0~30mg/L; 10~150mg/L

formaldehyde

0.2~3.2mg/L

Hydrazine

0~1mg/L

sulfates

5~250mg/L

chloride

5~50mg/L; 50~500mg/L

silicon dioxide

1~80mg/L

nitrates

0~25mg/L; 5~100mg/L

lead

0~1.6mg/L

copper

0~10mg/L

nickel

0~5mg/L

phosphate

0.6~90mg/L

volatile phenols

0.017~2mg/L

Chlorine dioxide

1~200mg/L

hydrogen peroxide

0.2~40mg/L

Cyanuric acid

5~50mg/L

urea

0.05~3.5mg/L

metasilicic acid

2~100mg/L

Residual chlorine/total chlorine

0.02~3 mg/L; 0.1~10 mg/L

Total Hardness

0.5~10mg/L; 50~500mg/L

volatile phenols

0.1~12mg/L

nitrite

0~10mg/L

Hexavalent chromium

0~2mg/L

Total Chromium

0~2mg/L

Asian Iron

0~10mg/L

Total Railway

0~10mg/L

manganese

0~20mg/L

Permanganate Index

0.5~5mg/L

iodine

0.07~7mg/L

pH

6.5~8.5

bromine

0.05~5mg/L

reactive oxygen species

0.005~1mg/L

hydrogen peroxide

0.01~1mg/L

ozone

0.01~2.5mg/L

Chlorine dioxide

0.04~5mg/L

Volatile fatty acids

50~3000mg/L

Zinc

0~2mg/L

cadmium

0.005~1mg/L

COD

20~1500mg/L; 100~2000mg/L

COD High Chlorine Type I

1500~20000 mg/L

Ammonia nitrogen (salicylic acid)

0~2.5 mg/L; 0~50 mg/L

cyanide

0.005~0.5mg/L

sulfides

0.02~1mg/L

Fluorides

0~2mg/L

cobalt

0.02~2mg/L

aluminum

0.002~0.2mg/L

arsenic

0.1~5mg/L

TP

0.02~2mg/L

phosphate

0.06~6 mg/L

silicon dioxide

0.02~2mg/L

Turbidity

0~200 NTU; 200~2000 NTU

chromaticity

0~500°

suspended matter



Product Features

1. A 7-inch color touchscreen, easy to operate, with a clear interface.

2. Built-in thermal printer for convenient instant printing

3. Built-in curves, plug and play

4. The control board and communication board are independent, offering strong expandability.

5. Abundant data communication interfaces: 2 USB A ports, 1 USB B port, and a 485 interface, facilitating product upgrades and connection to external LIMS systems.

6. Using imported LED light sources, no need to replace the light source during long-term testing.

7. Using a reference light source to eliminate background noise and other interference factors improves measurement accuracy.

8. It can store no less than 100,000 test data records, facilitating the tracing of historical test data records.

9. It uses a Φ 25mm/10mL or Φ 16mm circular colorimetric cell and has a wide range of applications .


Specification

Product Parameters

project

Detailed information

Input and display

7-inch color touchscreen

light source

Light-emitting diode (LED)

detector

photodiode

Test mode

Absorbance (Abs) and Concentration (Conc)

Number of light sources

7 light sources (including 1 reference light source)

Display accuracy

The concentration can be set between 1 mg/L and 0.001 mg/L.

Measurement error

≤5%

Measurement repeatability

≤3%

Sample cell

Φ16mm and Φ25mm/10mL round colorimetric bottles

interface

USB A×2, USB B×1, RS485×1

Work environment

Temperature: 0 to 50°C; Humidity: ≤90%, non-condensing

Power requirements

220V 50Hz

Dimensions (length × width × height)

Approximately 341×207×134mm

Weight (g)

Approximately 3,200
