Portable Rapid Water Quality Tester Testing Kit

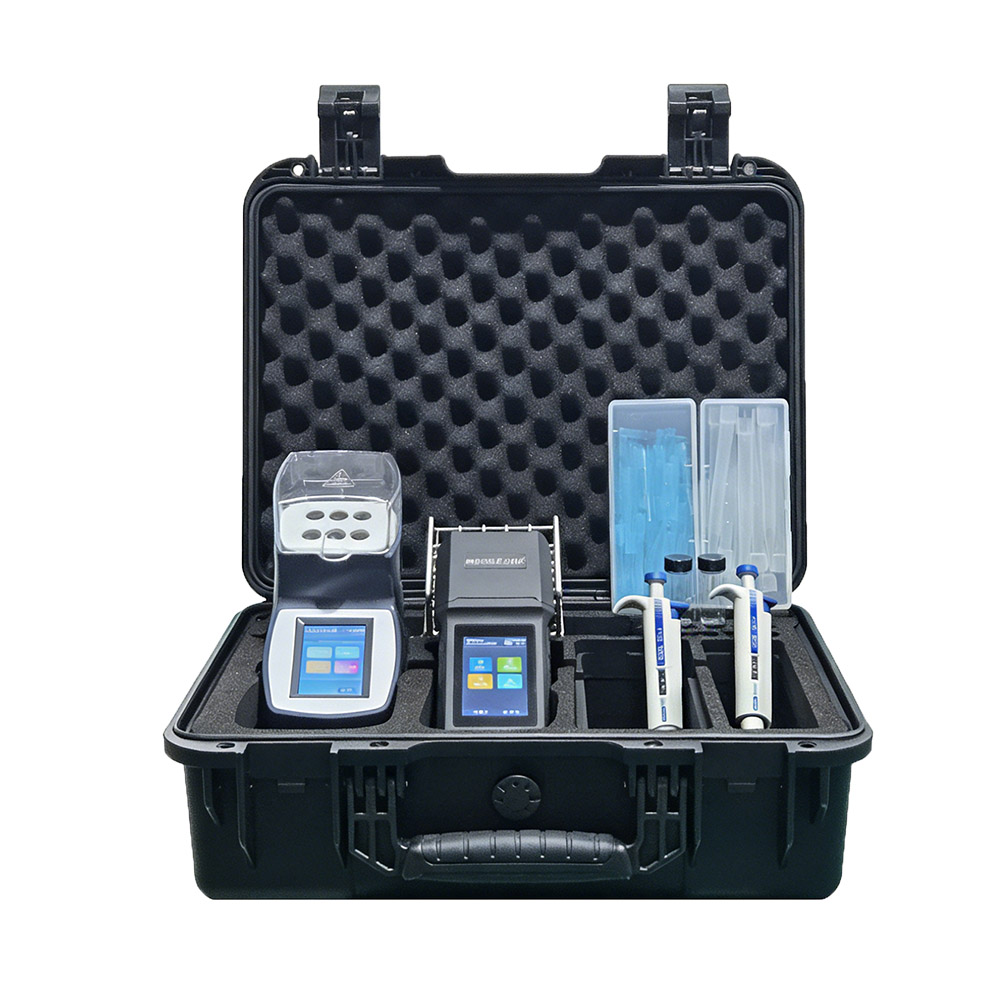

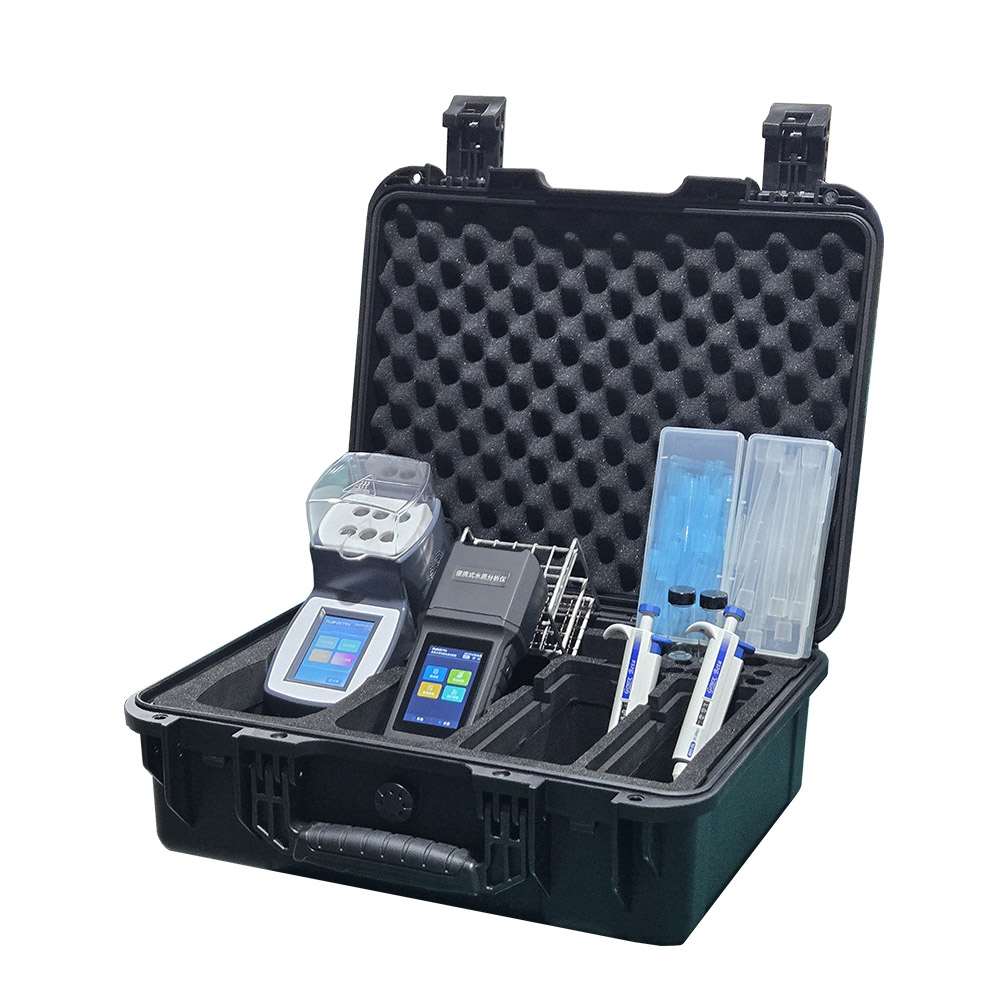

Product Composition

Water quality analysis module ; digestion module ; pipetting module ; accessory module

Features

The entire machine is built with a shockproof box, making it sturdy, drop-resistant, and not easily damaged.

Analysis module:

Multi-parameter, multi-range:

It can measure multiple ranges of parameters such as COD (including ultra-low range), permanganate index, Nessler ammonia nitrogen, salicylate ammonia nitrogen, total phosphorus, total nitrogen, residual chlorine, total chlorine, chlorine dioxide, ozone, nitrite, nitrate nitrogen, hexavalent chromium, total chromium, total iron, ferrous iron, copper, manganese, nickel, zinc, cobalt, aluminum, silicon/metasilicate, sulfate, cyanide, turbidity, color, total hardness, and total alkalinity.

convenience

Users can create new curves using the dilution factor method.

Curves can be imported via Type-C interface

Curves can be input by entering K&B values, etc.

consistency

The light source is calibrated before leaving the factory to ensure the consistency of measurement indicators.

Multi-sample cell

Φ25mm/10mL colorimetric bottles are used for the detection of indicators such as turbidity, color, and hardness.

Φ16mm digestion colorimetric dual-purpose tube adapter for the detection of pre-prepared reagents.

Multiple light sources

Different light sources are built-in to meet different performance requirements.

Low power consumption (built-in 18650 rechargeable battery)

Using an LED light source, no need to replace the light source during long-term testing.

Built-in backlight, which can be manually turned on or off.

Massive storage

It can store no less than 100,000 test data records and provides host computer software for easy export and retrieval.

Compatibility: Compatible with reagents from different brands

Portability: It can be held in the palm of your hand, completely under your control.

Dissolution module:

It features a 3.5-inch TFT color touchscreen , making it easy to operate and providing a clear interface.

It has a built-in digestion program and can be customized according to user needs.

It adopts a thick film heating mode, which has a fast heating speed and a long service life.

It adopts intelligent PID temperature control, ensuring precise temperature control with an accuracy of ± 0.1℃.

It has a temperature calibration function to improve temperature accuracy.

A high-transmittance integrated safety shield is used to facilitate observation of the sample digestion process.

Supports over-temperature protection for safer use.

With low operating power consumption, it can be used with an outdoor power supply for multiple cycles of decompression, making it convenient for outdoor use.

Pipetting module:

Equipped with 1ml and 5ml pipettes, meeting the pipetting requirements of pre-prepared reagents for COD, ammonia nitrogen, total phosphorus, and total nitrogen.

Attachment module:

The test tube rack, pipette tips, and wiping cloth kit eliminates the need to purchase additional consumables to meet various testing requirements. Purchasing an outdoor power supply further expands the range of outdoor testing needs.
