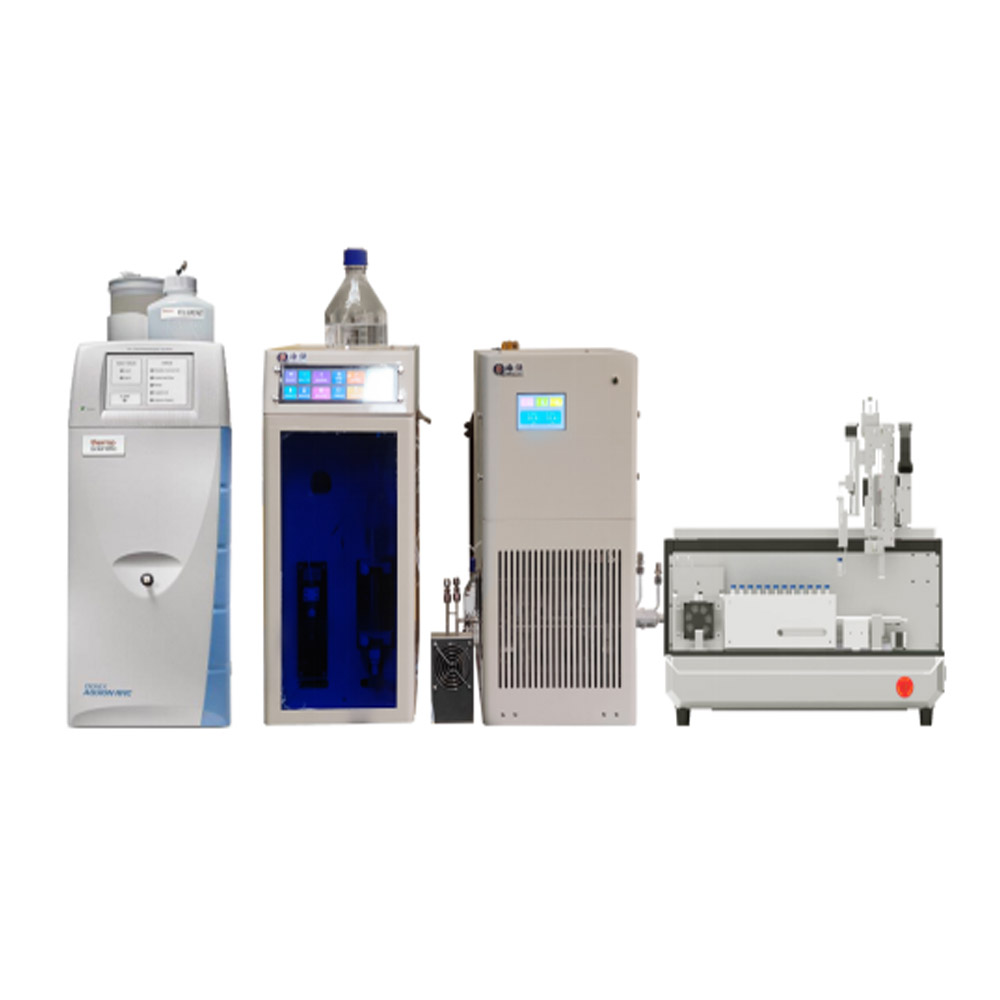

HQ-911F Fully Automatic Online Combustion Cracking And Absorption System

Applied Code

Fully met but not limited to the following domestic / international standard methods:

JIS K7392-2009------Determination of the total content of waste plastic and bromine

GB/T 37861-2019------Determination of halogen content in electronic and electrical products-ion chromatography

SNT 5254-2020------Determination of fluorine and chlorine in coal by high-temperature hydrolysis-ion chromatography

HJ/T83-2001---------Water quality can be adsorbed organic halogen (AOX) determination-ion chromatography

GBT 39285-2020----- Palladium compound analysis method Determination of chlorine content-ion chromatography

SNT 5307-2021--------Determination of fluorine, chlorine, and sulfur for petroleum products by direct combustion-ion chromatography

GBT 40111-2021--------Determination of fluorinated chlorine and sulfur content in petroleum products-combustion-ion chromatography

TCAS 318-2018--------Polymer halogen content detection for wire and cable-oxygen bomb combustion-ion chromatography method

UOP991-11-----------Burning furnace-ion chromatography system analysis to detect fluorine, chlorine and bromine in liquid organic matter

GBT 41067-2021-------Determination of sulfur, fluorine, chlorine, bromine content in graphene powder by combustion ion chromatography

DB13T 2499.2-2017------Method of determination of liquid mixtures — Part 2 simultaneous determination of total sulfur and total chlorine (ion chromatography)

ASTM D5987-96---------Determination of total fluoride in coal and coke carbon by hydrolysis extraction and ion selective electrode or ion chromatography

ASTM D7359------------Determination of total fluoride, chlorine and sulfur in aromatics and its mixture by high temperature oxidation combustion method and ion chromatography detection method

DB34T 3368.2-2019-------Methods for analysis of hazardous substances in printed circuit boards- -Part 2: Determination of halogens (chlorine and bromine) by ion chromatography

Product Features

Set automatic injection-combustion-lysis-absorption-determination as one, release the labor force;

High purity inert gas continuously purge, obtain very low system blank, easy to face supertrace halogen and sulfur analysis;

Open and close cracking furnace body structure, observe and replace the cracking tube is convenient and quick;

Automatic absorption level and volume can reduce the internal standard demand, reduce pollution, improve data repeatability;

Application Reference

Perfluorinated compounds in the water quality / environment:

Organic perfluorinated compounds are popular water quality pollutants. After directional adsorption, under the action of CIC combustion cracking, all organic halogen compounds are released in the form of inorganic halogen ions, and the content of total organic halogen compounds is directly determined, which is a more economical and effective environmental monitoring and control method.

Halogen compounds in OLED:

Halogens in organic luminescent materials can seriously affect the life of the devices, so they are strictly limited. Through CIC combustion cracking, the matrix complexity of various materials can be ignored, and the halogen can be released effectively and quickly measured by ion chromatography.

Halogens and sulfur in the minerals:

In the smelting process, sulfur increases the chance of environmental pollution and increases the production cost of the enterprise; halogen intensifies the corrosion of equipment at high temperature. The content of halogen and sulfur in mineral raw materials can be quickly obtained through high-temperature combustion cracking, providing necessary data support for the subsequent process.

Application Area

Environment: environmental water, sewage, waste plastics, soil and so on

Electronic components: printed circuit boards, resins, cables, insulation materials, OLED, etc

Fuel: gasoline, kerosene, crude oil, coal, etc

Plastic: polyethylene, polypropylene and other polymers

Colant: pigments, paint, etc

Pharmaceutical products: APIs, intermediates, preparations, etc

Food: edible oil, spices, condiments and so on

Product Superiority

Automatic: Automatic to complete the injection, combustion cracking, absorption and injection of solid / liquid / gas samples, and realize the rapid and reliable analysis of sulfur and halogen (F, Cl, Br, I) in the sample.

Accuracy: high recovery rate, high repeatability, overall better than the semi-automatic combustion furnace

Compatibility: strong compatibility, can be connected to any brand of ion chromatograph

Good service: the origin is in Jinan, Shandong, the supply cycle is shorter, the country has multiple offices, after-sales service is more timely

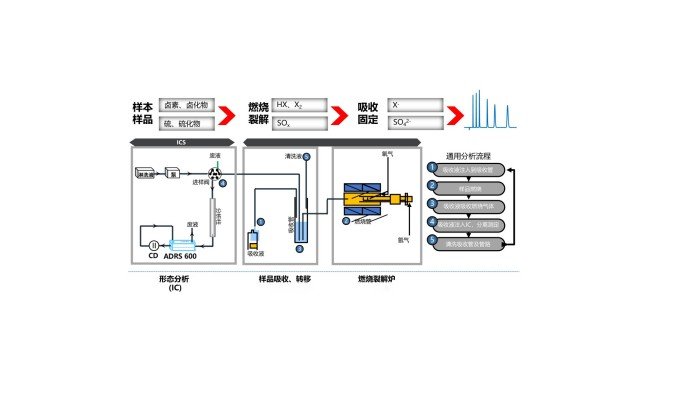

Operational Principle

Fully automatic injection controller according to the program, the solid and semi-solid samples to the evaporation, carbonization, ash, and finally in the oxygen-rich, high temperature environment (800-1100℃) and water vapor atmosphere combustion cracking, and halogen and sulfur completely released, and fixed in a specific absorption absorption (halogen in X-, total sulfur in SO42-). After the combustion-lysis-absorption process is completed, the absorption liquid is automatically pumped into the ion chromatography system to complete the determination of each halogen form and sulfur compound.

Technical Parameters
