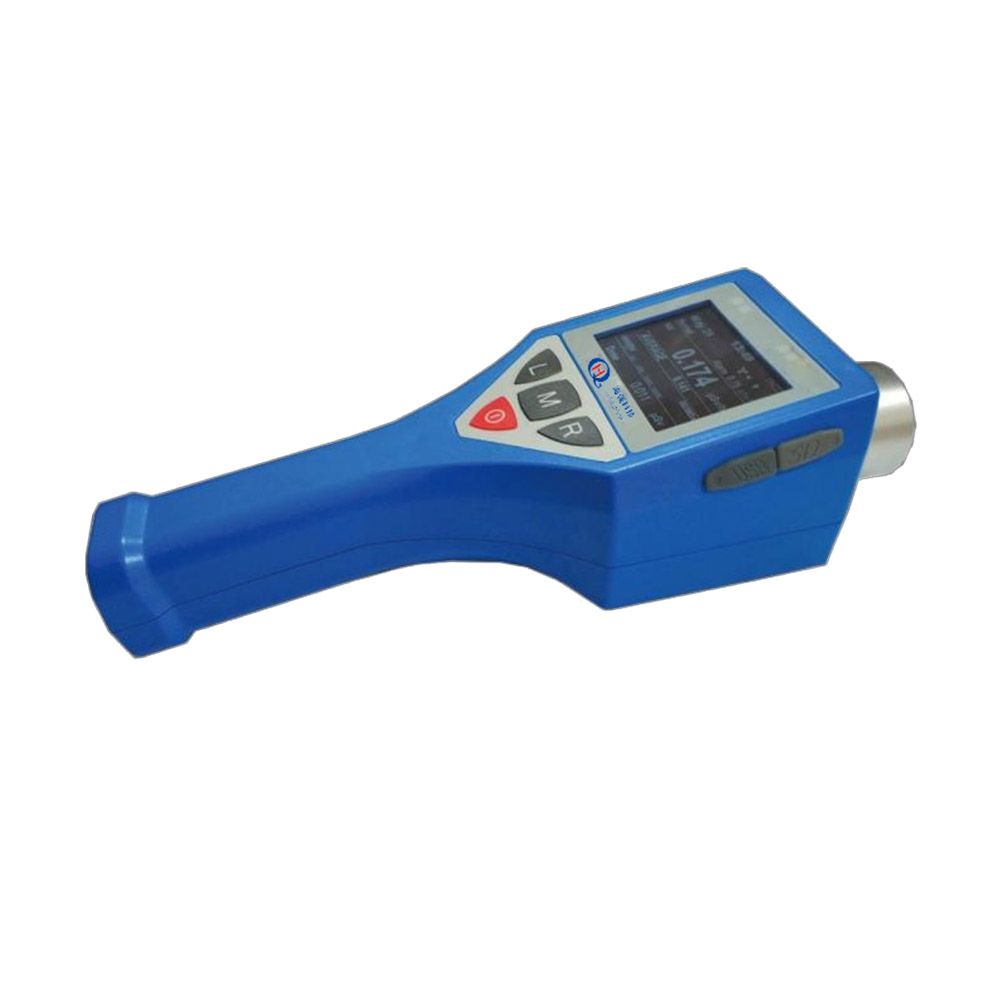

HQ50-T21 Integrated X-pulse Radiation Monitoring Instrument

(92) Reviews

Product Description:

The HQ50-T21 integrated X-pulse radiation survey meter employs a Time-to-return algorithm, capable of accurately measuring gamma rays and being more sensitive to short-term pulse radiation. It can detect short-term (≥50ms) X-pulse radiation and is water and dust resistant, allowing it to operate in harsh environments. It has a wide range of applications, including environmental monitoring (nuclear safety), radiation health monitoring (disease control, nuclear medicine), national security monitoring (entry/exit, customs), public safety monitoring (public security), nuclear power plants, laboratories, and nuclear technology applications, as well as in the detection of radioactivity in scrap metal within the recycling industry. The instrument complies with the requirements of GBZ201.5 "Pulse Radiation Field Measurement" standard.


Share:

Inquiry Now

Specification

Technical specifications

Detected radiation type

X-rays, gamma rays, continuous radiation, short-time radiation, pulsed radiation, hard beta rays

Main Detector

Scintillation Detector + PMT;

Auxiliary Detector: GM Tube

Detector size

NaI（TI)；φ1.2"×1.2"

sensitivity

≥400cps/（μSv/h）（137Cs）

Sub-detector

Dose rate range

0.1μSv/h~150mSv/h；

Main Detector

Dose Rate Range

Continuous radiation field:

 1nSv/h~1.2mSv/h

Pulse radiation  field:

 10nSv/h~12mSv/h

Energy response

25keV~3.5MeV

Cumulative dose range

1nSv~999Sv

Relative intrinsic error

≤±15%

Extreme Detection Response

10ms pulse time (when the dose rate reaches 5μSv/h)

Repeatability

≤±6%

Detection frequency

Starting from 1 second, it can be continuously adjusted.

Alarm threshold

Starting from 0.25μSv/h, it is adjustable.

Detection response

50ms pulse duration (short-term radiation)

Work mode

Normal mode, pulse mode

Alarm method

Sound and light

Battery life

5V~1A

Temperature range

-35℃~+50℃

Humidity range

0~90%R.H

尺寸Size

240mm×100mm×80mmweight:<700g



Product Configuration

High-speed dual-core processor

16G large capacity memory card

USB data cable

2.8 inches 320*240 TFT color LCD display

High-speed fast-charging charger

Large-capacity lithium battery

Multilayer Digital Analysis Gold Plated Circuit

Color backlight processor

Customized thin-film keypads

High-intensity ABS electromagnetic interference resistant waterproof housing

High-intensity waterproof packaging box

WiFi Optional
